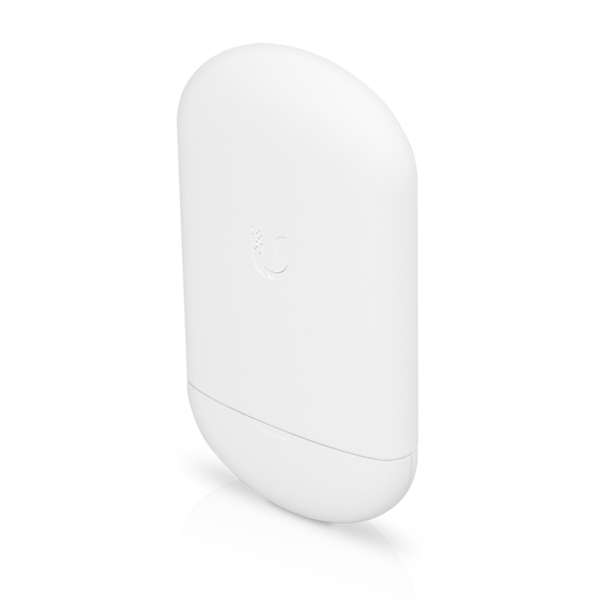

Ubiquiti Networks NanoStation 5AC Loco 1000 Mbit/s White Power over Ethernet (PoE) (Ubiquiti LOCO5AC)

Streamlined design for quick and reliable outdoor deployments.
Lightweight, cost-effective solution for PtP and PtMP networks.
Delivers high-speed, low-latency wireless links in a small form factor.
Compact 5 GHz CPE with powerful airMAX ac performance.
Streamlined design for quick and reliable outdoor deployments.
Lightweight, cost-effective solution for PtP and PtMP networks.
Delivers high-speed, low-latency wireless links in a small form factor.
Compact 5 GHz CPE with powerful airMAX ac performance.

KSh7,000.00 Exc. Tax

Ubiquiti LOCO5AC is a compact, UISP-ready WiFi radio sporting a classic NanoStation design and an updated airMAX AC chipset.

  • 5 GHz, 10+ km link range
  • 450+ Mbps throughput
  • Dedicated spectral analysis radio
  • Same-day Nairobi
    Order by 3pm
  • 24–72h Upcountry
    Reliable couriers
  • Genuine + Warranty
    Authorized stock
  • M-Pesa / Card / Bank
    Secure checkout
SKU: 1075807 Category: Brand:

Ubiquiti Networks NanoStation 5AC Loco 1000 Mbit/s White Power over Ethernet (PoE) Ubiquiti LOCO5AC

airMAX NanoStation 5AC Loco

Ubiquiti LOCO5AC is a compact, UISP-ready WiFi radio sporting a classic NanoStation design and an updated airMAX AC chipset.

Classic NanoStation design with updated proprietary airMAX ac chipset and dedicated management Wi-Fi for easy UISP mobile app support and fast setup. Excellent solution for a simple PtP bridge or use as a PtMP station (CPE).

Ubiquiti Networks NanoStation 5AC Loco 1000 Mbit/s White Power over Ethernet (PoE)

Additional Product Notes of the Ubiquiti LOCO5AC

  1. New antenna
  2. Improved design
  3. Management Wi-Fi Radio/UISP mobile app
  4. AirOS 8
Network standardsMaximum data transfer rateEthernet LAN data ratesPlacementInternal memoryOperating system installed
Power over Ethernet; WLAN1000 Mbit/s10,100,1000 Mbit/sCeiling64 MBAirOS

Specifications of the Ubiquiti LOCO5AC

Mechanical
Dimensions179 x 77.5 x 59.1 mm (7.1 x 3.1 x 2.3″)
Weight180 g (6.4 oz)
Enclosure materialUV-stabilized plastic
MountingPole mounting kit (Included)
Hardware
Networking interface(1) GbE RJ45 port
Power methodPassive PoE 2-pair (4, 5+; 7, 8 return)
Power supply24V, 0.3A gigabit PoE supply (Not included)
Supported voltage range22–27V DC
Max. power consumption7W
LEDsPower, Ethernet, (4) signal strength
Ambient operating temperature-40 to 70° C (-40 to 158° F)
Ambient operating humidity5 to 95% noncondensing
CertificationsCE, FCC, IC
System
Gain13 dBi
Channel bandwidths10/20/30/40/50/60/80 MHz
Cross-pol isolation20 dB min.
Max. VSWR1.8:1
Beamwidth45° (H-pol) / 45° (V-pol) / 45° (Elevation)
PolarizationDual linear
Operating Frequency (MHz)
Worldwide5150-5875 MHz
USA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3		 5150-5250 MHz
5250-5350 MHz
5240-5725 MHz
5725-5850 MHz
Management Radio (MHz)
Worldwide2412 – 2472 MHz
US/CA2412 – 2462 MHz

Construction Features of the Ubiquiti LOCO5AC

Construction Features
